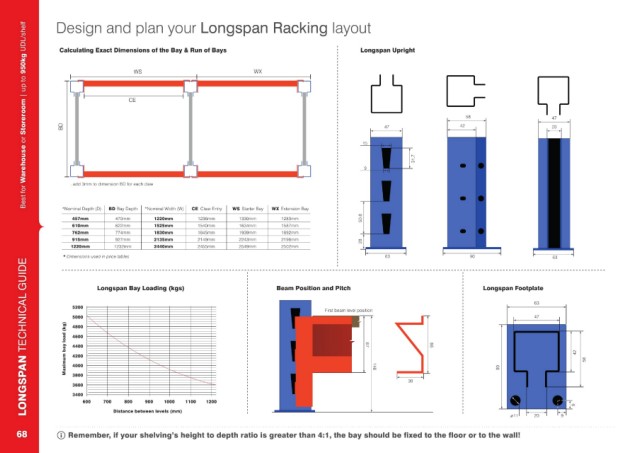

Design and plan your Longspan Racking layout
Best for Warehouse or Storeroom | up to 950kg UDL/shelf

Calculating Exact Dimensions of the Bay & Run of Bays Longspan Upright

WS WX

CE

58 47
BD 47 42 20

15
31.7
9

..add 3mm to dimension BD for each claw

*Nominal Depth (D) BD Bay Depth *Nominal Width (W) CE Clear Entry WS Starter Bay WX Extension Bay
457mm 470mm 1220mm 1236mm 1330mm 1283mm 50.8
610mm 622mm 1525mm 1540mm 1634mm 1587mm
762mm 774mm 1830mm 1845mm 1939mm 1892mm
915mm 927mm 2135mm 2149mm 2243mm 2196mm 28
1220mm 1232mm 2440mm 2455mm 2549mm 2502mm
* Dimensions used in price tables 63 90 63
LONGSPAN 7(&+1,&$/ *8,'(

Longspan Bay Loading (kgs) Beam Position and Pitch Longspan Footplate
63
5200
First beam level position
5000 47
Maximum bay load (kg) 4600 87 86 42 58
4800
4400
4200
4000
148
3800
39 90
3600
3400
600 700 800 900 1000 1100 1200
9
Distance between levels (mm)
11 20 9
68 5HPHPEHU LI \RXU VKHOYLQJ·V KHLJKW WR GHSWK UDWLR LV JUHDWHU WKDQ WKH ED\ VKRXOG EH À[HG WR WKH ÁRRU RU WR WKH ZDOO
